Synopsis of Calcific Aortic Stenosis

Acknowledgements

  • Dr. I. Smith Cardiac anesthesia fellow*
  • Dr. M. Wasowicz Staff anesthetist*
  • Dr. A. Jerath Staff anesthetist*
  • Dr. A. Vegas Staff anesthetist*
  • Dr. C. Feindel Staff surgeon†
*Department of Anesthesia and Pain Management, Toronto General Hospital
Department of Surgery, Toronto General Hospital

Synopsis

Definition

  • Calcific Aortic Stenosis Calcification of the AV cusps leading to a narrowed valve orifice with antegrade flow restriction and turbulence
  • Aortic sclerosis Valve thickening without obstruction to LV outflow tract1

Gender and Prevalence

  • Calcific Aortic Stenosis M > F, 2% > 65 years, 4% > 85 years2,3
  • Aortic Sclerosis M > F, 26% > 65 years, 48% > 85 years4

Etiology

  • Congenital Rare, although may be associated with uni- or bicuspid AV
  • Acquired Majority of cases. Risk factors include male gender, smoking, hyperlipidaemia and metabolic syndrome5

Pathophysiology

  • AS and sclerosis involves a local athero-inflammatory process similar to atherosclerotic disease
  • Calcification involves the base and body of the cusp without commissural fusion1, 6
    • Flow restriction and systolic pressure overload leads to compensatory increase in LV wall thickness in order to maintain SV and minimize LV systolic wall stress. This leads to diastolic dysfunction and reduced coronary vasodilator reserve with the myocardium at risk of subendocardial ischemia, fig. 1, 2, 3a & 3b.
    • Females demonstrate greater LV wall thickening and cavity obliteration than males
  • Low-flow Low-gradient AS occurs with LV systolic dysfunction and severe AS
    • Defined by EOA < 1 cm2, LV EF < 40%, mean pressure gradient < 30-40 mmHg6, 7
    • Results from either inadequate LVH in response to the high afterload or poor contractile state, for example CAD
  • Sclerosis May progress to valve calcification with valvular outflow obstruction. Associated with increased cardiovascular mortality4

Clinical Presentation

  • Symptom onset Commonly at 70-90 years of age
  • Early symptoms Reduced exercise tolerance from diastolic dysfunction
  • Late symptoms Angina (35%), syncope (15%), heart failure (50%)8

Imaging & Investigations

  • ECG LV strain, LVH, LBBB
  • CXR Aortic root calcification and post-stenotic aortic dilatation
  • Echocardiography Assess AV morphology, function, associated features and grade severity, see echo features table. The following are used to grade severity with various caveats6
    • AV planimetry Rapid estimation of anatomical AVA, though often overestimates. Technically difficult due to poor cusp definition from heavy calcium deposition, acoustic shadowing and reverberation artifact9, fig. 4, 5a and 5b.
    • AS jet velocity Requires parallel alignment of CW Doppler through the narrow orifice to avoid underestimating velocity. If the rhythm is irregular average at least 3 readings. Measurements are flow dependent, i.e low cardiac output states will produce lower transvalvular velocities and lead to underestimation of severity
    • Mean aortic pressure The maximum transvalvular pressure gradient is calculated using the peak jet velocity and the Bernoulli equation, Pmax = 4Vmax2 Mean gradient is measured by tracing the CW spectral Doppler which averages the instantaneous gradient over time. The mean gradient can also be estimated from the peak velocity,Pmean = 2.4Vmax2Use the modified Bernoulli equation if the VLVOT exceeds 1.5 m/sec,P = 4(VAV2 –VLVOT2)As jet velocities are used to calculate pressure gradients, these measurements are similarly flow dependent, fig. 6a and 6b.
    • Valve area Continuity equation forms the most reliable technique to measure the effective or physiologic AV area, AVA = CSALVOT x VTILVOT / VTIAV The effective AVA is smaller then the anatomic AVA due to flow stream retraction at the orifice. Greatest source of error arises within the squared measurement of LVOT diameter. Pressure recovery occurs in a small aorta and overestimates AVA, fig 6
    • Dimensionless velocity index This is the ratio of either the velocity or VTI of the LVOT over the AV, V (VTI)LVOT / V (VTI)AV Values below 0.25 indicate severe stenosis. DVI is flow independent, ie values are unaffected by changes in cardiac output, fig. 6a and 6b.
  • Dobutamine stress echocardiography assesses contractile reserve, peak VAS, mean gradient, EF in low-flow low-gradient AS. Patients displaying no contractile reserve with SV and EF rising < 20% have a higher surgical mortality6
  • Cardiac catheterization Not recommended to grade AS severity unless echo inconclusive. Cardiac cath measures the peak to peak gradient between the LV and aortic pressure. This underestimates the severity as it is lower than the peak instantaneous pressure gradient which is measured by echocardiography, fig. 8. AVA can be determined using the Gorlin formula, AVA = CO / 44.3 x SEP x HR x √PmeanAccurate estimation of AVA is affected by arrhythmias and is flow dependent, ie high cardiac output states may overestimate valve area. Catheterization aids in the identification of concomitant CAD1
  • Classification of AS Severity
    Severity V (m/sec) Mean gradient (mm Hg) AVA (cm2)IVAVR
    Mild 2.6-2.9 < 20 > 1.5 > 0.85 > 0.5
    Moderate 3-4 20-40 1-1.5 0.6-0.85 0.25-0.50
    Severe > 4 > 40 < 1< 0.6< 0.25
  • Typical progression of AS Increase jet velocity 0.3 m/sec/year, increase mean pressure gradient 7mmHg/year + decrease AVA 0.1cm2/year1, 12

Indicators for Surgical Intervention

  • Medical therapy Limited role. Statins may slow disease progression. Management of hypertension, AF and digoxin for LV systolic dysfunction 3, 11
  • Surgical Intervention Treatment of choice. Operative indications1:-
    • Symptomatic Isolated severe AS or combined with CABG, aortic or other valvular surgery1
    • Asymptomatic patients Controversial. Consider operative intervention in severe or mild-moderate AS if there is high risk of rapid progression (age > 50 years, heavily calcified valve and CAD) or patients develop symptoms or hypotension during exercise1, 10, 11
    • Mild-moderate AS patients undergoing CABG and likely rapid progression
    • LV dysfunction LV function can improve after AVR in severe AS with low EF. LV contractile dysfunction not caused by afterload mismatch is associated with greater overall mortality but may improve survival despite incomplete symptom resolution

Surgical Options

  • Balloon valvuloplasty Performed only as a palliative procedure in non-operative candidates or bridge to surgery in hemodynamically unstable patient due to high re-stenosis rate
  • Open valve replacement Mechanical or bioprosthetic valve placed using CPB, fig. 9.
  • Percutaneous valve replacement Retrograde transfemoral/subclavian or antegrade transapical bioprosthetic AVR can be performed without the use of CPB in elderly poor operative candidates13-18, fig. 7a, 7b, 7c, 7d, 7e, 7f, 7g, 7h, 7i, 7j,7k, and 7l.

Complications

  • Myocardial Ischemia
  • Infective endocarditis
  • LV diastolic and systolic dysfunction
  • Arrhythmias
  • Impaired platelet function and acquired VWF deficiency1

Survival

  • No surgical intervention Mortality from the onset of angina, syncope and CHF are 5, 3 and 2 years respectively3
  • Operative mortality Open AVR 3% rising to 14% with advanced age, co-morbidities and combination cardiac procedures19
    • Mechanical valves Good long term survival with 5 year event-free survival from thromboembolic and hemorrhagic complications 98-99%20. Requires oral anticoagulation
    • Bioprosthetic valves No long-term anticoagulation required. Shorter valve lifespan with 25% requiring redo surgery at 10 years
    • Complications post AVR Paravalvular leaks, infective endocarditits, hemorrhagic complications associated with oral anticoagulation
    • Patient prosthesis mismatch Residual stenosis and persistent symptoms of CHF from insertion of a valve with indexed EOA less than 0.85 cm2/m2. PPM associated with higher early and late overall mortality.21,24 Prevention is by insertion of an appropriately sized prosthesis with indexed EOA greater than 0.85 cm2/m2 which may require aortic root enlargement or use of a larger area stentless valve
  • Percutaneous AVR 30 day mortality 6.3 - 12.3%16-18, 27
    • Complications of transfemoral or transapical AVR Device embolization, paravalvular leak, mitral regurgitation, myocardial ischemia from coronary occlusion, tamponade, aortic root rupture.

Figures & Videos

  • Fig. 1 2D midesophageal AV SAX colour compare demonstrating flow turbulence and aortic insufficiency created by the calcified aortic valve.
  • Fig. 2 2D midesophageal AV LAX colour compare demonstrating flow turbulence distal to the valve and aortic insufficiency.
  • Fig. 3a. 2D xPlane of the aortic valve in SAX and LAX. Marked reverberation artifact is generated by the calcified aortic valve.
  • Fig 3b. Colour xPlane of the calcified aortic valve in SAX and LAX.

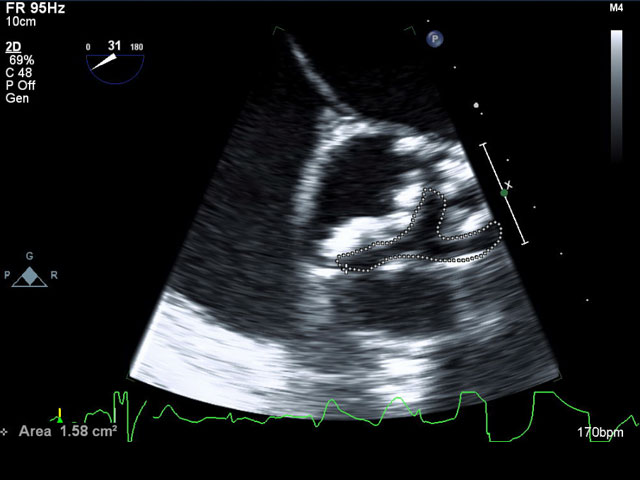

  • Fig. 4 2D planimetry of a calcified aortic valve.

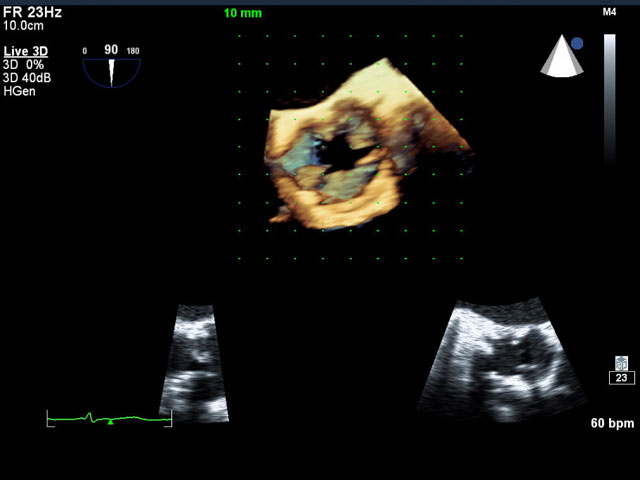

  • Fig. 5a 3D planimetry of the aortic valve can be perfomed rapidly on-line.

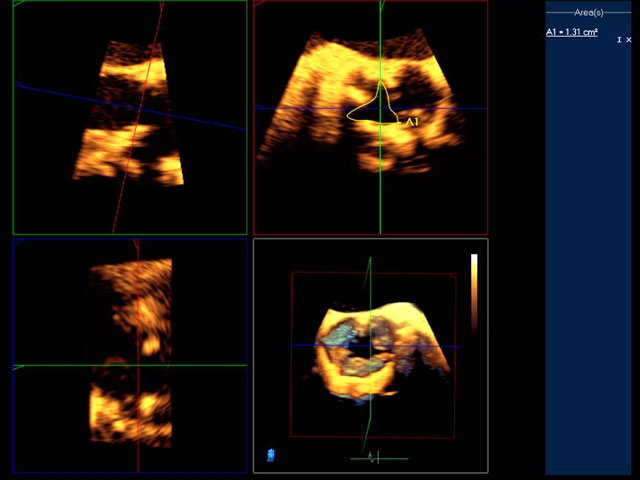

  • Fig. 5b 3D planimetry of the aortic valve performed off-line using 3DQA.

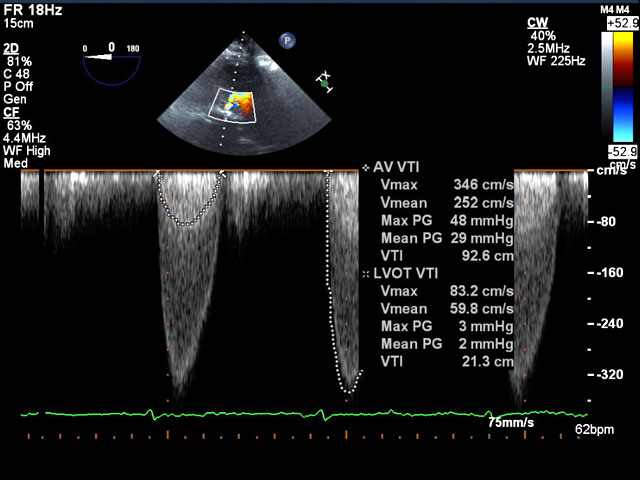

  • Fig. 6a CW Doppler within the deep TG depicts the double envelope created by the brighter LVOT overlapped by the less dense and higher velocity waveform created by the narrowed calcified aortic valve. The measured velocity and VTI can be used to measure the transvalvular pressure gradient, dimensionless velocity ratio and calculate the aortic valve area via the continuity equation using the LVOT diameter (shown in figure 6b).

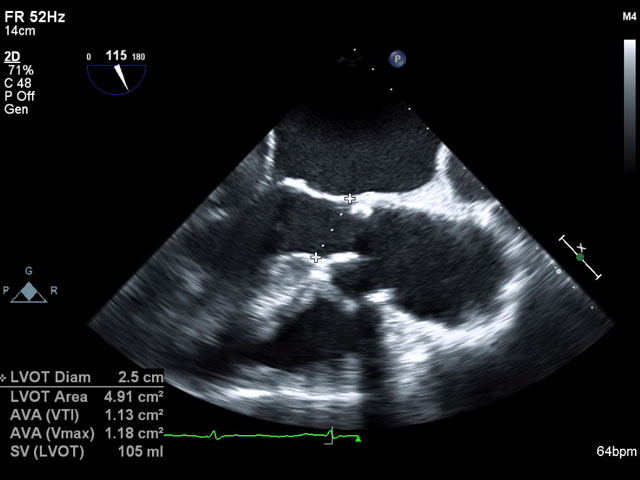

  • Fig. 6b LVOT diameter measured within the 2D midesophageal AV LAX.
  • Fig. 7a Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Severe calcific aortic stenosis is viewed within 3D zoom SAX.
  • Fig. 7b Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Severe calcific aortic stenosis is viewed within 3D zoom LAX.
  • Fig. 7c Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Turbulent flow is demonstrated distal to the calcified valve with central aortic insufficiency demonstrated in 3D FV colour AV LAX.
  • Fig. 7d Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Turbulent flow is demonstrated distal to the calcified valve with central aortic insufficiency demonstrated in rotated LAX to the aortic side.
  • Fig. 7e Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. A wire has been inserted across the aortic valve as demonstrated within 2D AV LAX.
  • Fig. 7f Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. A wire has been inserted across the aortic valve as demonstrated within 3D Live AV LAX.
  • Fig. 7g Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Balloon valvotomy of the stenotic valve is performed under rapid ventricular pacing.
  • Fig. 7h Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. A stented valve is inserted through the LV apex and positioned across the native AV for deployment as seen within 3D FV AV LAX.
  • Fig. 7i Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. A bioprosthetic valve has been deployed with a posterior paravalvular leak as viewed in 2D colour AV LAX.
  • Fig. 7j Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. A bioprosthetic valve has been deployed with a posterior paravalvular leak as viewed in 2D colour AV SAX.
  • Fig. 7k Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Paravalvular leak can be seen within 3D FV colour AV LAX.
  • Fig. 7l Figures 7(a)-(l) demonstrate the insertion of a transapical aortic valve replacement. Paravalvular leak can be seen within 3D FV colour deep TG images.

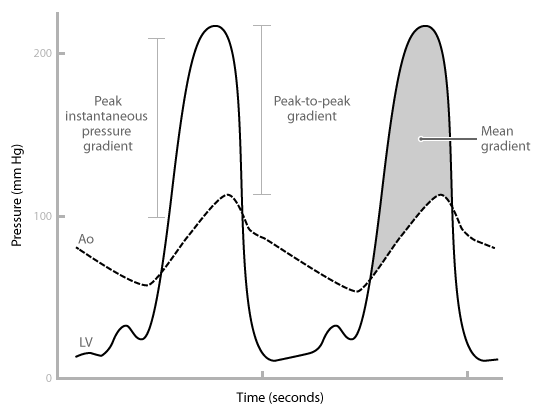

  • Fig. 8 Pressure tracings obtained by cardiac catheterization in a patient with aortic stenosis.
  • Fig. 9 Intraoperative view of a calcified aortic valve.

Echo Features

TEE views used for diagnosis

  • ME AV SAX
  • ME AV LAX
  • TG mid SAX
  • TG LAX
  • Deep TG

What to look for in 2D and 3D TEE

  • Cusp number (uni-,bi-,tri-,quadra-cuspid)
  • Assess for valve calcification + reduced valve orifice
  • Reduced cusp excursion valve
  • AV planimetry9
  • Aortic root dimensions
  • Post-stenotic aortic dilatation
  • Identify additional calcium deposits on the mitral annulus (MAC) + aorta

What to look for in Colour Doppler

  • Identify flow turbulence distal to AV
  • Assess severity + location AI

What to look for in Spectral Doppler

  • PW Doppler LVOT to assess peak/mean pressure gradients+ VTILVOT (continuity equation)
  • PW Doppler LVOT dagger shaped waveform if septal hypertrophy
  • CW Doppler AV to assess peak/mean pressure gradients + VTIAV
  • AI PHT/Deceleration time

Differential Diagnosis

Prosthetic valve stenosis

  • Degeneration and pannus formation or endocarditis of an old prosthetic
  • Patient prosthetic valve mismatch can lead to obstructive symptoms when an inappropriately small sized valve is implanted

Rheumatic aortic stenosis

  • Fusion of commissures reduce systolic cusp excursion and create a narrowed + circular orifice

Uni-, bi-, quadricuspid aortic valve disease

  • Calcification of a non-trileaflet valve can lead to valvular stenosis + regurgitation
  • Diastole may reveal altered cusp number + morphology but presence of a raphe within a bicuspid valve can often be mistaken for a tri-leaflet valve
  • Systole often reveals eccentric cusp opening + altered cusp number

Endocarditis

  • Formation of vegetations often occur on a pathological native or prosthetic AV with reduced systolic surface area
  • Masses are usually mobile + located on the LV side of the AV
  • Associated complications include aortic root abscess, fistulae formation + pseudoaneurysm

Associated Conditions

LV function and Mitral valve disease

Views

  • ME 4C
  • ME 2C
  • ME LAX
  • TG SAX

2D/3D

  • Assess LV systolic function + wall thickness + cavity size22
  • Assess for LV septal hypertrophy + risk of SAM + need for combined myectomy
  • MV morphology + mechanism of MR or MS
  • Identify calcium bridge which may extend from the aortic-mitral curtain

Colour Doppler

  • MR jet direction + severity. Concomitant MR is common from LV pressure overload and improves after AVR.
  • Mechanism of MR must be assessed for consideration of MVR
  • Concomitant mitral stenosis causes low-flow low-gradient AS

Spectral Doppler

  • LV diastolic dysfunction by using mitral annular tissue Doppler, PW Doppler MV + PVe
  • M-mode to measure LV wall thickness + grade LVH
  • Assess and grade severity MR or MS

Post aortic valve replacement

Views

  • ME AV SAX
  • ME AV LAX
  • TG LAX
  • Deep TG

2D/3D

  • Mechanical or bioprosthetic valve
  • Assess valve position + stability
  • Assess mobility of each leaflet
  • Assess for LVOT obstruction from SAM of the AMVL
  • LV systolic function + size + volume status

Colour Doppler

  • Identify normal prosthetic valve washing jets
  • Assess for intravalvular + paravalvular leaks
  • Assess for LVOT flow turbulence
  • Assess for new MR, VSD
  • Posterior directed MR jet with SAM

Spectral Doppler

  • CW Doppler AV to assess peak/mean pressure gradients in correlation with patient hemodynamics. High gradients post CPB are common and do not always reflect PPM
  • Assess LVOT gradient + dagger waveform if LVOT obstruction + SAM22, 24, 25
